Sale!

Recessed Path & Step Marker Light - Lightpro Onyx 20

Recessed Path & Step Marker Light - Lightpro Onyx 20 - Image 2

Recessed Path & Step Marker Light - Lightpro Onyx 20 - Image 3

Recessed Path & Step Marker Light - Lightpro Onyx 20 - Image 4

Recessed Path & Step Marker Light – Lightpro Onyx 20

Name: Recessed Path &amp; Step Marker Light - Lightpro Onyx 20
Brand: Lightpro
SKU: 212D-ONYX-20
Price: 28.00 GBP
Availability: InStock

Original price was: £35.00.Current price is: £28.00. inc VAT

The smallest Onyx decklight: a 20mm recessed marker giving low-level orientation light along paths, steps and terraces. 0.3W at 2700K, IP67 rated. Foot traffic only, this size is not driveable.

12V low-voltage system · 6-year warranty only when installed as a complete Lightpro system (Lightpro transformer, cable and connectors).

Need power? Add a Power Pack for the 6-year warranty

Lightpro Garden Lighting Power Pack Small - 100W Transformer, 25 m Cable & Connectors

100 W Lightpro transformer, 25 m of 12V cable and connectors: everything except the lights. Add it to your Lightpro lights to make a complete Lightpro system that qualifies for the 6-year warranty.

Complete-system add-on · qualifies your Lightpro lights for the 6-year warranty.

Add for inc VAT

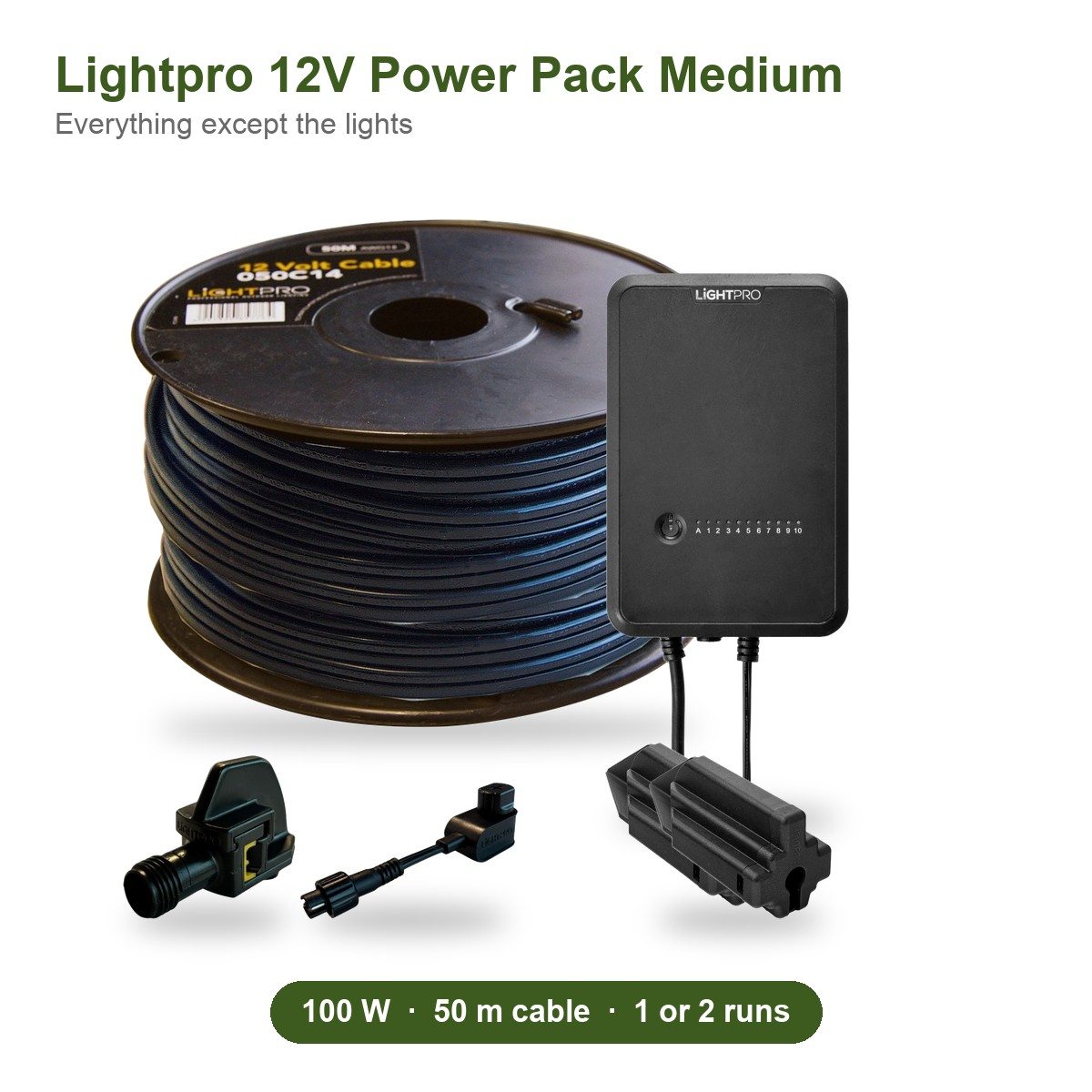

Lightpro Garden Lighting Power Pack Medium - 100W Transformer, 50 m Cable & Connectors

100 W Lightpro transformer, 50 m of 12V cable and connectors: everything except the lights. Add it to your Lightpro lights to make a complete Lightpro system that qualifies for the 6-year warranty.

Complete-system add-on · qualifies your Lightpro lights for the 6-year warranty.

Add for inc VAT

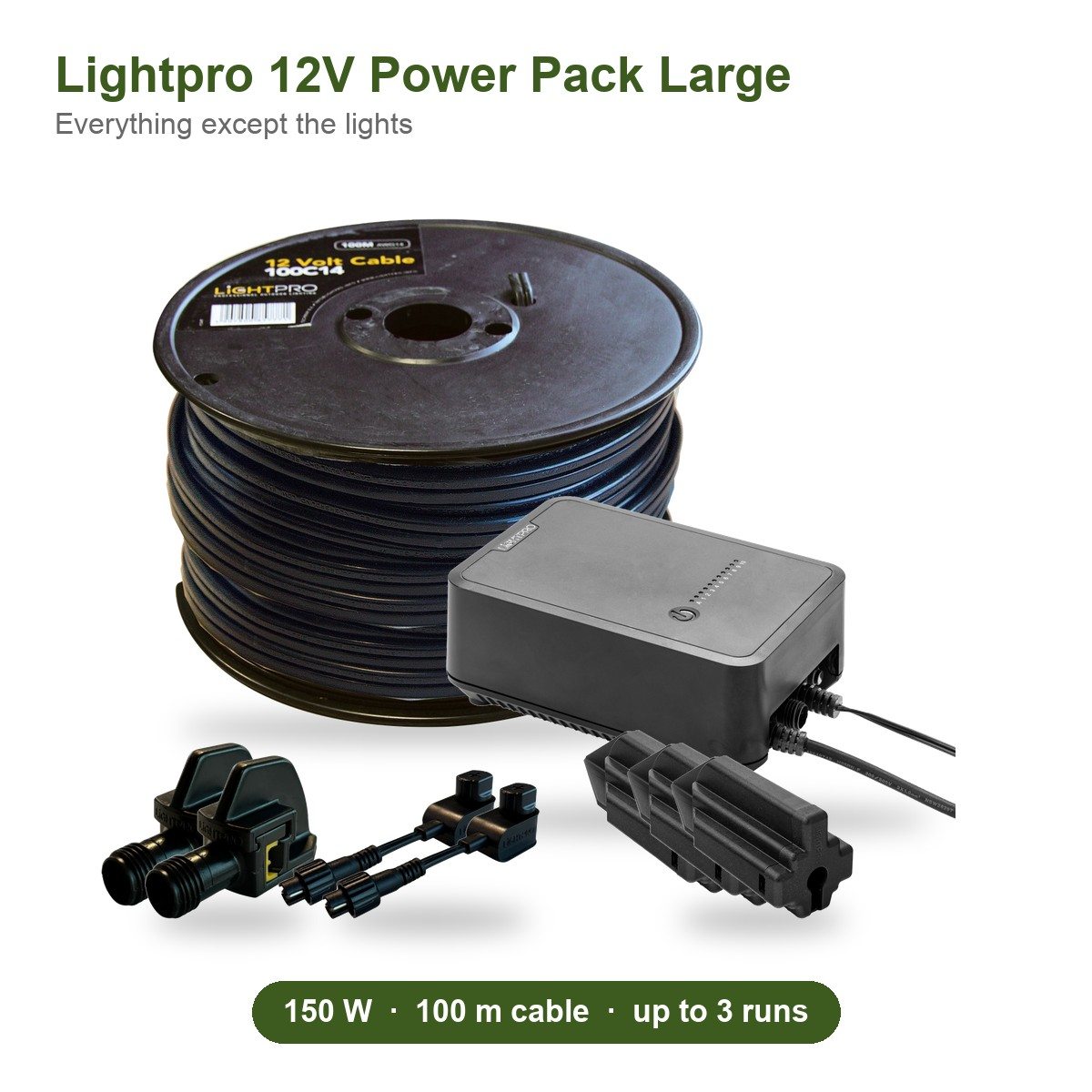

Lightpro Garden Lighting Power Pack Large - 150W Transformer, 100 m Cable & Connectors

150 W Lightpro transformer, 100 m of 12V cable and connectors: everything except the lights. Add it to your Lightpro lights to make a complete Lightpro system that qualifies for the 6-year warranty.

Complete-system add-on · qualifies your Lightpro lights for the 6-year warranty.

Add for inc VAT

SUMMER SALE up to 50% off

0 days

0 hours

0 minutes

0 seconds

Huge UK Stock – Next Day Delivery Available!
Secure Online Payments
Easy, Hassle-Free Returns

Order by 1.30pm for next day delivery

0 hours

0 minutes

0 seconds

12V Plug & Play System · 6-Year Warranty

12V low-voltage fitting: this light runs on the Lightpro 12V system and must be powered by a Lightpro 12V transformer via Lightpro cable and connectors. It cannot be wired directly to mains power. The Lightpro transformer plugs into a standard outdoor socket and steps mains power down to a safe 12 volts, so there’s no electrician needed and the cable doesn’t need to be buried.

Warranty – complete Lightpro system required: Lightpro’s 6-year manufacturer’s warranty only applies when this product is installed as part of a complete Lightpro 12V system, meaning Lightpro fittings, a Lightpro transformer, Lightpro cable and Lightpro connectors used together. Connecting it to another brand’s transformer, cable or connectors voids the warranty. It must be installed as the product manual describes, the included light source is excluded, and proof of purchase is required.

Read the full Lightpro warranty terms →

Make it a complete system with a Lightpro Power Pack

No Lightpro transformer and cable yet? Add a Lightpro 12V Power Pack (transformer, cable and connectors) and your lights qualify for the 6-year warranty as a complete Lightpro system.

With these lights about 1 m apart: Small (100 W, 25 m) runs up to 21, Medium (100 W, 50 m) up to 46, Large (150 W, 100 m) up to 92. Mixing lights? Go by your cable route and total watts – each Power Pack page explains how.

The Onyx 20 sets into a 20mm hole and all but disappears in daylight. After dark it gives a small point of warm 2700K light, enough to mark the edge of a step, the line of a path or the perimeter of a terrace without lighting the area itself. It is the subtlest fitting in the Onyx range and the one to use where a brighter marker would dominate.

Unlike the Onyx 30, 60 and 90, the Onyx 20 is not rated to be driven over, so specify it for pedestrian areas and keep the larger sizes for driveways and crossovers. Rated IP67 in a black plastic body with a 1 metre tail and F-connector. A matching mounting sleeve (237A) is available separately.

Key features

0.3W at 2700K, orientation light rather than area light
Not driveable: pedestrian areas only, unlike the Onyx 30, 60 and 90
20mm drill diameter, 33 x 20 x 20mm body
IP67 rated black plastic
107 degree beam, CRI 80, 25,000 hour rated LED life
1 metre cable with F-connector for plug-and-play 12V connection

Light effect

Lightpro Onyx 20 light effect diagram

Specifications

Article number: 212D
EAN: 8719979282233
Voltage: 12V low voltage (Lightpro 12V system)
Suitable for: Terrace, Driveway, Path, Roof, Staircase
Dimensions (H x W x D): 33 mm x 20 mm x 20 mm
Material: Plastic
Colour: Black
IP rating: IP67
Electrical protection class: III
Drill hole diameter: 20 mm
Power: 0.3 W
Light output: 1 lm
Light colour: Warm white
Colour temperature: 2700 K
Colour rendering (CRI): 80
Beam angle: 107°
Light direction: Upwards
Light source type: SMD LED
Light source included: Yes
Replaceable light source: No
Dimmable: No
External dimmer compatible: No
Smart: No
Cable length: 1 m
Cable size: 20AWG
AC/DC compatible: Yes
Start-up voltage: 9 V
Operating temperature: -20 °C to +50 °C
Rated life: 25,000 hours
Drive-over: No
Underwater: No
Adjustable: No
Supplied accessories: F-connector
Weight: 0.052 kg
Warranty: 6 years

Downloads & documents

📄 Product sheet (PDF)📖 Instruction manual (PDF)▶ Installation video (YouTube)

Recessed Path & Step Marker Light – Lightpro Onyx 20
